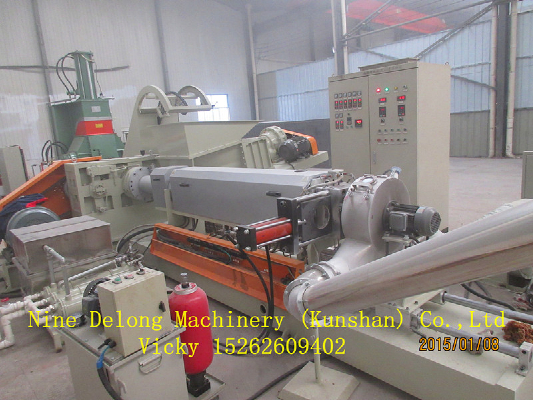

Rubber masterbatch granulator

Technical Characteristics:

1. Set mixing, conveying, granulation, isolation, cooling breeze as one to achieve with modern automated continuous production, high production efficiency.

2. Nine Delong  precise temperature control type mixer, mixing system is fully in accordance with the "X" curvilinear motion, dispersion with the industry's best.

3. Because of the unique visco-elastic rubber, a "conical twin screw feeder means" forced feeding, clean and strong secondary assist kneaded rubber compounding, greatly improving the efficiency and quality of granulated rubber.

4. granulator using a rotary cutter with fine-tuning device, be air-cooled hot pelletizing, particles uniform, smooth section.

5. Isolation injection and recovery system, release agents can be reused many times, to prevent dust pollution of the workshop.

6. The electric control system adopts Mitsubishi PLC, visual interface and frequency conversion technology, to achieve full automation control.

7. Taiwan's technical drawings, the main components are imported brand configuration, fault, low maintenance, low energy consumption.

Feature: This machine is normally used produce PVC/LSFH/ chloridize  polythene/function master batch raw material ,It consists of main body ,conical feeder and die-face cutting system etc. Put the mixed material into the feeding inlet .After being pushed in by two shafts ,the material is extruded by a screw .The granules which being cut is the final product ,This machine is easy to operate.

Applicable products: all kinds of rubber masterbatch, sulfur masterbatch, rubber accelerator, antioxidant, and other rubber masterbatch granulation.

Rubber granulator production line process:

Mixer - Bucket feeder - double-cone forced feeding machine - single screw extruder - drop-cooled die face Pelletizing Auxiliary - powder release agent injection system - a cyclone - release agent recovery systems - vibrating screen - release agent recovery system - finished pellet storage tank
